CONNECTORS

CRIMP FITTINGS – CF PRESSED FITTING
Cast Soft Bronze, crimp parallel cable splicer.
TWINS
CF1B Cast Soft Bronze, crimp parallel cable splicer.

2" x 1–3/16" (5.1cm x 3cm). Approximately 2.5 oz. (71 grams).

CF1T Tinned
PF1C Stamped Copper, crimp parallel cable splicer.
PF1A Stamped Aluminum
tamped Copper, crimp perpendicularly dissecting cable splicer.
TEES
PF2C Stamped Copper, crimp perpendicularly dissecting cable splicer.
PF2T Tinned
PF2A Stamped Aluminum
Stamped Copper, crimp in-line abutting cable splicer.
STRAIGHTS
PF3C Stamped Copper, crimp in-line abutting cable splicer
.
PF3T Tinned
PF3A Stamped Aluminum
Cast Soft Bronze, crimp splicer for cable to metallic body connections.
BONDING LUGS
CF4B Cast Soft Bronze, crimp splicer for cable to metallic body connections.

Use for inter-connections to door tracks, eaves troughs, etc.
Approximately 5/8" x 3-1/2" (1.59cm x 8.9cm).
2.3 oz. (65 grams).

F4T Tinned

Approximately 2.3 oz. (65 grams).

F4A Cast Aluminum

Approximately 1.5 oz. (43 grams).

Cast Soft Bronze, crimp cable to metallic surface fitting.
BONDING PLATES
CF6B Cast Soft Bronze, crimp cable to metallic surface fitting.

Approximately 1–13/16" x 2–3/8" (4.6cm x 6cm);
3.5 oz. (99 grams).

CF6T Tinned
CF6A Cast Aluminum

Approximately 2–1/8" x 2–3/4" (5.4cm x );
2 oz. (57 grams).

CONDUIT CAPS – CC
Air Terminal Conduit Cap.
CC1B Air Terminal Conduit Cap

A cast bronze cap machined to fit snugly on Schedule 40 1–1/2" (3.8cm) PVC tubing. Threaded to accept 1/2–13 threaded rod.
Comes with rod coupling to attach air terminal, 1/2" EPDM washer and 1/2" flat washer.
Approximately 4.5 oz. (128 grams).

Use suffix 3/8 or 1/2 to denote air terminal thread size.

CC1A Aluminum

Approximately 1.3 oz. (37 grams).

Use suffix 1/2 or 5/8 to denote air terminal thread size.

Conduit Cap.
CC2B Conduit Cap

A cast bronze cap machined to fit snugly on Schedule 40 1–1/2" (3.8cm) PVC tubing.
Threaded to accept 1/2–13 threaded rod.
Comes with 1/2" flat washer and 1/2" nut.
Approximately 9.0 oz. (255 grams).

CC2A Aluminum

Approximately 3.4 oz. (96 grams).

CC2T Tinned

Approximately 9.0 oz. (255 grams).

Conduit Cap to Threaded Rod.
CC3B Conduit Cap to Threaded Rod

Cast bronze cap with bolt pressure cable holder machined to fit snugly over 1–1/2" Schedule 40 PVC conduit.
Internally threaded brass hex stock adapter extends below.
Stainless steel nut and washer.
Overall height 2.8" (7cm).
Approximately 12.8 oz. (363 grams).
Specify 3/8 or 1/2 internal thread size when ordering.

CC3A Aluminum

Approximately 4.8 oz. (136 grams).
Specify 1/2 or 5/8 internal thread size when ordering.

Conduit Cap to Cable.
CC4B Conduit Cap to Cable

Cast bronze cap with bolt pressure cable holder machined to fit snugly over 1–1/2" Schedule 40 PVC conduit.
Has brass hex stock bolt pressure cable holder extending below.
Stainless steel bolts, nuts and washer.
Overall height 4.2" (10.6CM).
Approximately 15.2 oz. (431 grams).

CC4A Aluminum

Approximately 5.6 oz. (159 grams).

Conduit Bushing.
Conduit Bushing

A brass conduit bushing to be used with 1/2" copper pipe cable guards.
Has set screw for bonding cable to copper pipe.
7/8" x 3/4" (2.22cm x 1.9cm).
Approximately 1.1 oz. (31.2 grams).

BOLT FITTINGS – BF
Round–Round.
BF1B Round–Round

Cast bronze, bolt pressure cable to cable or cable to rod clamp.
1–1/4" stainless steel hex head bolt and washer.
1–9/16" x 1–3/4" (4cm x 4.45cm).
Approximately 6.3 oz. (179 grams).

BF1BM Modified Round–Round

Cast Bronze, as above with shorter 1" hex head bolt.

BF1A Aluminum

Approximately 3 oz. (85 grams).

Round–Round US PATENT NO. 424,924.
BF100B Round–Round US PATENT NO. 424,924

Cast bronze bolt pressure cable to cable or cable to rod clamp.1–1/2" stainless steel carriage bolt.
Specifically designed for cable splices on single membrane roofs.
1–9/16" x 1–3/4" (39.7mm x 44.45mm).
Approximately 7.6 oz. (215 grams).

BF100A Aluminum

Approximately 3 oz. (85 grams).

Round to Round 'Drilled Out'.
BF1BX Round to Round "Drilled Out"

Cast bronze bottom and two-way cap for joining cable to rod.
Bottom is drilled out but not threaded.
Stainless steel washer and nut included.
1–9/16" x 1–3/4" (39.7mm x 44.45mm).
Approximately 6.8 oz. (193 grams).

BF1AX Aluminum

Approximately 2.3 oz. (65 grams).

BF1BX1/2 Round To Round "Spin On"

Cast bronze bottom and two–way cap with 1/2" diameter threaded hole for joining cable to threaded rod.
Bottom is drilled and threaded for 1/2" (12.7mm).
Stainless steel nut and washer included.
1–9/16" x 1–3/4" (39.7mm x 44.45mm).
Approximately 6.8 oz. (193 grams).

BF1AX1/2 Aluminum

Approximately 2.3 oz. (65 grams).

Cast bronze pressure 'tee' splicer.
BF2B Tee

Cast bronze pressure "tee" splicer.
Stainless steel bolts and washer.
2–1/4" x 2" x 5" (5.7cm x 5.1cm x 12.7cm).
Approximately 10 oz. (284 grams).

BF2A Aluminum

Approximately 3.5 oz. (99 grams).

4–bolt hex brass straight splicer.
BF3B Straight

4–bolt hex brass straight splicer.
Stainless steel bolts. 3–1/2" x 3/4" (8.9cm x 1.9cm) hex.
Approximately 6 oz. (170 grams).

BF3A Aluminum

Approximately 2 oz. (57 grams)

.
Bonding Lug.
BF4B Bonding Lug

Cast bronze primary cable to metal surface bonding lug.
Has over four square inches of contact.
Stainless steel bolts. 2–1/4" x 2" x 5" (5.7cm x 5.1cm x 12.7cm).
Approximately 9 oz. (255 grams).

BF4A Aluminum

Approximately 3 oz. (85 grams).

Mini Bonding Lug.
BF5B Mini Bonding Lug

Cast bronze secondary cable to metal surface bonding lug.
Stainless steel bolts.
3–1/2" x 9/16" (8.9cm x 1.4cm).
Approximately 3 oz. (85 grams).

BF5A Aluminum

Approximately 2 oz. (57 grams).

Round to Flat.
BF7B Round to Flat

Cast bronze bolt pressure cable to flat surface clamp.
Stainless steel bolt and washer.
1–9/16" x 2–1/4" (4cm x 5.7cm).
Approximately 7.3 oz. (207 grams).

BF7A Aluminum

Approximately 3 oz. (85 grams).

2–Way Bonding Plate.
BF8B 2–Way Bonding Plate

Cast bronze, 8–square–inch bonding plate with 2–way bolt pressure cable holder.
Stainless steel bolt and washer.
2–1/16" x 4" (52.38mm x 101.6mm).
Approximately 10.3 oz. (292 grams).

BF8A Aluminum

Approximately 3.8 oz. (108 grams).

16 Square Inch Bonding Plate.
BF800B 16 Square Inch Bonding Plate

Heavy duty cast bronze, 16 square inch bonding plate with 2 two–way bolt pressure cable holders.
Stainless steel bolts and washers.
4" x 4" (102mm x 102mm).
Approximately 1 lb 6.8 oz. (647 grams).

BF800A Aluminum

Approximately 9.12 oz. (260 grams).

Bonding Clamp.
BF9B Bonding Clamp

Cast bronze, 4–square–inch bonding clamp with bolt pressure cable holder.
Stainless steel bolt and washer.
Approximately 9 oz. (255 grams).

BF9A Aluminum

Approximately 3 oz. (85 grams).

2–Bolt Parallel.
BF10B 2–Bolt Parallel

Cast bronze clamp for splicing or connecting two rods, two cables or rod to cable.
Stainless steel carriage bolts with nuts and washers.
2" x 1–5/8" (5.1cm x 4.13cm).
Approximately 8 oz. (227 grams).

BF10A Aluminum

Approximately 2.5 oz. (71 grams).

1–Bolt Parallel.
BF11B 1–Bolt Parallel

Cast bronze clamp for splicing or connecting two rods, two cables or rod and cable where less contact is acceptable.
Stainless steel carriage bolt, nut and washer.
1" x 1–5/8" (2.54cm x 4.13cm).
Approximately 4 oz. (113 grams).

BF11A Aluminum

Approximately 1.3 oz. (37 grams).

Round Bonding Plate.
BF12B Round Bonding Plate

Cast bronze 5.9 square inch bonding plate with 2–way bolt pressure cable holder.
Stainless steel bolt and washer.
2–3/4" (7cm ) diameter.
Approximately 10 oz. (284 grams).

BF12A Aluminum

Approximately 3.5 oz. (99 grams)

.
Round Bonding Plate 'Spin On'.
BF12B1/2 Round Bonding Plate "Spin On"

Cast bronze 5.9 (149.9mm) square inch bonding plate.
Bottom has 1/2"diameter threaded hole.
Two–way bolt pressure cable holder.
Stainless steel washer and nut included.
2–3/4" (7cm) diameter.
Approximately 7.8 oz. (221 grams).

BF12A1/2 Aluminum

Approximately 1.8 oz. (51 grams).

Cross Run.
BF13B Cross Run

Cast bronze bolt pressure cross run or cross tee clamp.
Stainless steel carriage bolt, nut and washer.
1–9/16" x 1–3/4" (4cm x 4.5cm).
Approximately 8 oz. (227 grams).

BF13A Aluminum

Approximately 3.5 oz. 99 grams).

Steel–Back Bonding Plate.
BF14B Steel–Back Bonding Plate

Cast bronze, 8 square inch bonding plate with 2–way bolt pressure cable holder and a 1/4" (.64cm) mild steel back plate.
For direct welding to steel.
Stainless steel bolt and washer.
4" x 2" (10.2cm x 5.1cm).
Approximately 23.2 oz. (658 grams).

BF14A Aluminum

Approximately 16.8 oz. (476 grams).

Miniature Round to Flat.
BF15B Miniature Round to Flat

Cast bronze miniature cable to flat surface clamp for secondary bonding.
Stainless steel bolt and washer.
3/4" x 2–1/4" (1.9cm x 5.7cm).
Approximately 3.5 oz. (99 grams).

BF15A Aluminum

Approximately 1.5 oz. (43 grams).

3 Square Inch Bonding Plate.
BF16B 3 Square Inch Bonding Plate

Cast bronze secondary bonding plate. Two–way cable holder with stainless steel bolt and washer.
1–5/8" x 3–1/4" (4.1cm x 8.26cm).
Approximately 7.1 oz. (201 grams).

BF16A Aluminum

Approximately 2.6 oz. (73.7 grams).

Malleable Bonding Lug.
BF17B Malleable Bonding Lug

Bronze bonding lug for primary conductors.
2" x 4" (5.1cm x 10.2cm) pressed copper bottom plate – .064 thick.
Cast bronze two–way cap.
Stainless steel fastener.
Approximately 8.9 oz. (251grams).

BF17A Aluminum

2" x 4" (5.1cm x 10.2cm) pressed aluminum bottom plate – .1026 thick.
Approximately 4.3 oz. (121 grams)

.
8 Square Inch Beam Clamp.
BF18B 8 Square Inch Beam Clamp

Cast bronze 8 square inch bonding plate with 2 two–way bolt pressure cable holders.
For primary bonding to beams and similar flat metal protrusions.
2 stainless steel bolts and washers.
3–1/4" x 4" (82.6mm x 101.6mm).
Approximately 2 lbs. 2.1 oz. (967 grams).

BF18A Aluminum

Approximately 13.3 oz. (377 grams).

4 Square Inch Beam Clamp.
BF19B 4 Square Inch Beam Clamp

Cast bronze 4 square inch bonding plate with 1 two–way bolt pressure cable holder.
For primary bonding to beams and similar flat metal protrusions.
Stainless steel bolt and washer.
3–1/4" x 2" (82.6mm x 50.8mm).
Approximately 1 lb. 1 oz. (482 grams).

BF19A Aluminum

Approximately 6.7 oz. (190 grams).

Cable Splicer.
BF20B Cable Splicer

Cast bronze two–way cable holder with hex brass bolt pressure cable tap.
Stainless steel bolts, nut and washer.
3.8" (100mm).
Approximately 9.6 oz. (272 grams).

BF20A Aluminum

Approximately 5.6 oz. (159 grams).

EXOTHERMIC CONNECTIONS

We stock a complete line of weld metals, molds and accessories. Call for a complete catalog of exothermic weld equipment.

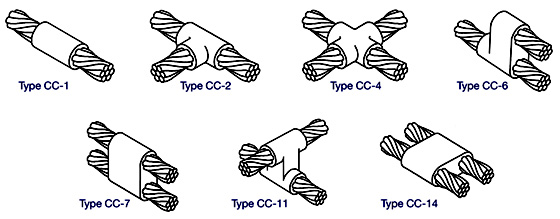

CABLE TO CABLE
CABLE TO CABLE.

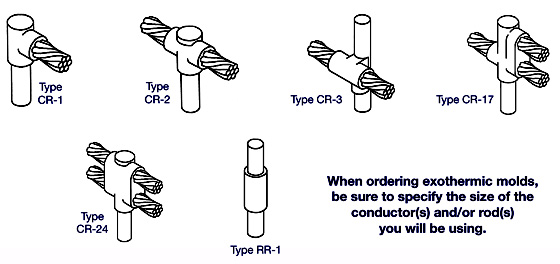

CABLE TO GROUND ROD
CABLE TO GROUND ROD.

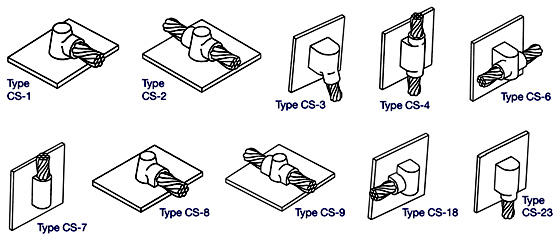

CABLE TO SURFACE
CABLE TO SURFACE.

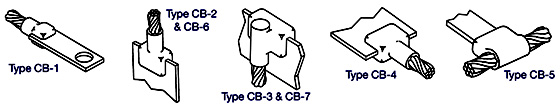

CABLE TO LUG OR BUS
CABLE TO LUG OR BUS.

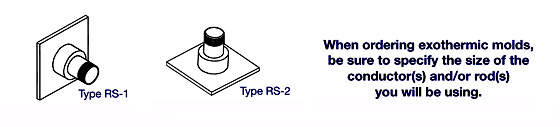

THREADED STUD TO STEEL SURFACE
THREADED STUD TO STEEL SURFACE.
